Electronic Data Recording
Artic Therm's Electronic Data Recorder monitors ambient air in pipes, tanks and vessels with real-time temperature and dew point data
Artic Therm's Electronic Data Recorder monitors ambient air in pipes, tanks and vessels with real-time temperature and dew point data

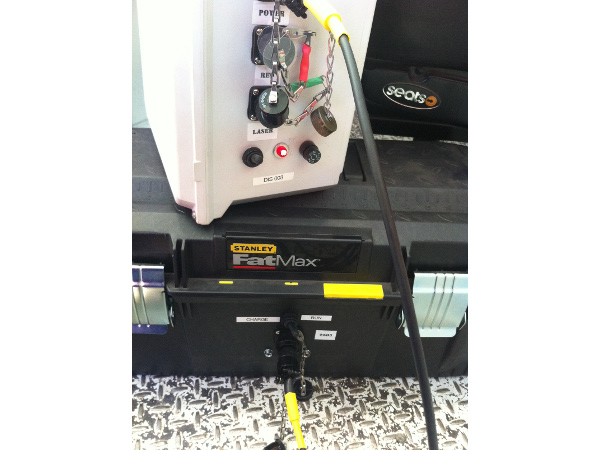

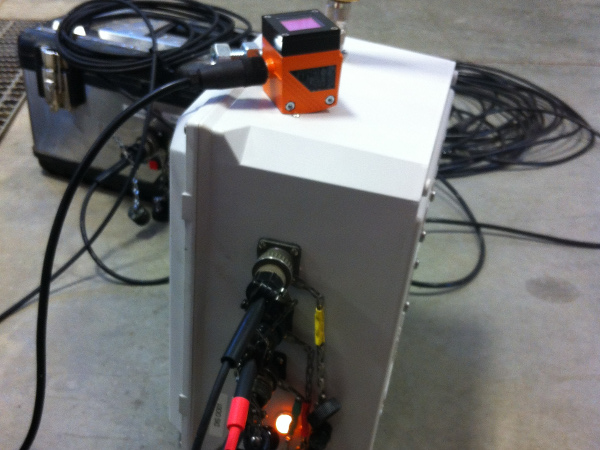

Artic Therm's Electronic Data Recorder monitors the ambient air in pipes, tanks and other vessels, providing realtime data of the temperature and dew point levels. This remote monitoring system consists of sensors placed at both the distal and input ends of the pipe. The data is transmitted back to the main gateway where it is recorded and monitored utilizing Warrior Logging software.
Advanced monitoring capabilities for industrial applications
User selectable sample rates for precise data collection
Allows calibration of sensors for accurate results

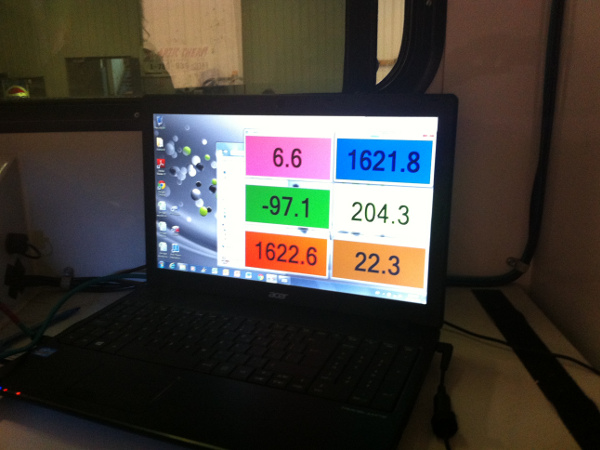

Sensors are displayed with their raw data readings
Outputs displayed with calibrated values and engineering units
Detailed technical specifications for the Electronic Data Recording system
100000 ohm thermistor, tolerance +/- 2° C, range -80 to 150°C
Temperature range, -40 to 171°C — FPM 0-12000 — accuracy, 1.5% of full scale accuracy

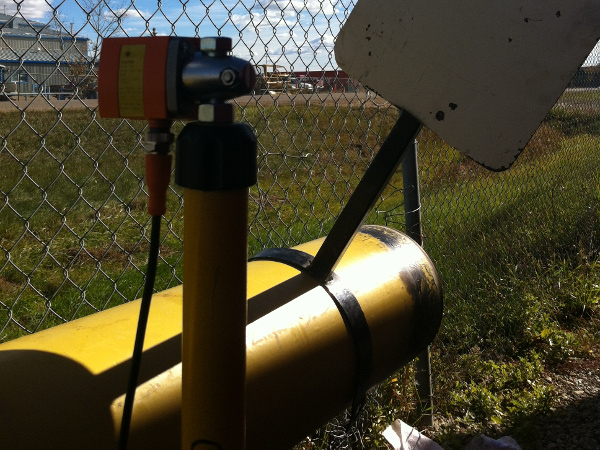

Range .2 to 10 meters on white target
Temperature range, -20 to 120º C, Temp accuracy, .5º C RH accuracy, +/- 1%
5 to 95%, dew point – 60 to +40º C
Wireless gateway and sensor nodes – use 1 W, 900 Mhz radio signal
Versatile applications for industrial monitoring needs
Drying to extremely low dew point levels with precise monitoring
Maintain steady temperature and airflow in industrial processes
Tank drying, coating and curing applications
Commissioning and decommissioning lines with precise monitoring
Gas compressor and plant startups with monitoring
Comprehensive data logging and analysis capabilities
Contact us today to discuss your Electronic Data Recording requirements and get a custom quote.
